What Is the Best Kreg Cabinet Hardware Jig Pro XL for Your Cabinet Installation Needs in 2026?
Quick Answer: The Kreg Cabinet Hardware Jig Pro XL (KHI-PULLPROXL) is the top choice for most DIYers and professionals, offering flexible full-length to compact setup that accommodates hardware sizes from small knobs to large 12-inch pulls at just $99.99. For budget-conscious builders, the Kreg Cabinet Hardware Jig (KHI-Pull) at $32.98 delivers solid accuracy for basic knob installation. Cabinet hardware jigs typically range from $30 to $250, with mid-range models ($50–$100) offering the best balance of versatility and precision. The key takeaway: invest in a jig that matches your hardware variety—compact models suit single-project builders, while convertible systems pay for themselves after just a few cabinet installations.
Cabinet hardware installation is one of the most visible yet technically challenging aspects of custom cabinetry and furniture building. A misaligned knob or pull can ruin the aesthetic of an otherwise perfectly crafted piece, and drilling holes freehand introduces inconsistency across multiple cabinet doors and drawers. Cabinet hardware jigs eliminate guesswork by providing precision-engineered guides, repeatable stops, and adjustable positioning systems. The market offers solutions ranging from simple portable guides for basic knob placement to professional-grade systems capable of handling complex shaker-style recessed pulls and wide cabinet doors. In July 2026, five standout models dominate the category, each addressing different skill levels, project scopes, and budget constraints. Whether you’re refinishing a single kitchen cabinet or undertaking a full custom build, selecting the right jig can reduce installation time by 50 percent and ensure hardware placement that looks professionally executed every time.
Which Kreg Cabinet Hardware Jigs Stand Out in 2026?
Kreg Cabinet Hardware Jig (KHI-Pull) – Best Budget-Friendly Portable Option
Kreg Cabinet Hardware Jig - Portable Drilling Guide for Knobs
- Portable Guided Drilling: The Kreg Cabinet Hardware Jig creates clean, accurate holes when a drill press isn’t available—giving you repeatable results with ease
- Professional-Grade Accuracy: Kreg’s precision-engineered guides deliver accurate results, giving DIYers and pros the confidence to create ideally positioned hardware and holes
- Consistent, Repeatable Results: Built-in stops and intuitive adjustment features eliminate the guesswork, helping to make every installation or hole uniform from project to project
- Engineered for Versatility: Offers adaptable, user-friendly design—ideal for cabinets, furniture, or creative builds—making it easy to tackle any woodworking task
- Premium Kreg Tools: We offer products that help woodworkers close the gap between idea and outcome
As an Amazon Associate we earn from qualifying purchases. Product prices and availability are accurate as of the date/time indicated.
The Kreg Cabinet Hardware Jig (KHI-Pull) is the entry-level solution for DIYers who need portable guided drilling without investing in a full workshop setup. At $32.98, this jig delivers professional-grade accuracy through Kreg’s precision-engineered guides, making it ideal for small projects involving knobs and compact pulls. The portable design means you can take it to your workshop, job site, or even use it on-location for installation work. Built-in stops and intuitive adjustment features ensure repeatable results across multiple cabinet doors, eliminating the inconsistency that comes with freehand drilling. The moveable edge guide allows accurate positioning without requiring a drill press, making this jig perfect for renters, apartment dwellers, or builders with limited shop space.
Best for: DIYers tackling single-room cabinet updates, small furniture projects, and anyone prioritizing portability over wide hardware range. Pros: Extremely affordable, lightweight and portable, simple setup, reliable accuracy for standard knob sizes. Cons: Limited to smaller hardware sizes, not ideal for large pulls or wide cabinet doors, basic feature set compared to premium models. This jig excels when you’re installing matching hardware across 10–20 cabinet doors but struggles if you need to accommodate both 1-inch knobs and 8-inch pulls on the same project.
Kreg Cabinet Hardware Jig Pro (KHI-XLPULL) – Best Mid-Range Versatile Choice
Kreg Cabinet Hardware Jig Pro - Precision Installation Tool
- Extra-Large Hardware Capacity: The Kreg Cabinet Hardware Jig Pro accommodates pulls from 1-3/4" to 12" center-to-center, with a reversible design for precise placement on both doors and drawers
- Professional-Grade Accuracy: Kreg’s precision-engineered guides deliver accurate results, giving DIYers and pros the confidence to create ideally positioned hardware and holes
- Consistent, Repeatable Results: Built-in stops and intuitive adjustment features eliminate the guesswork, helping to make every installation or hole uniform from project to project
- Engineered for Versatility: Offers adaptable, user-friendly design—ideal for cabinets, furniture, or creative builds—making it easy to tackle any woodworking task
- Premium Kreg Tools: We offer products that help woodworkers close the gap between idea and outcome
As an Amazon Associate we earn from qualifying purchases. Product prices and availability are accurate as of the date/time indicated.
The Kreg Cabinet Hardware Jig Pro (KHI-XLPULL) bridges the gap between basic portability and professional capability, priced at $49.00. This model accommodates pulls from 1-3/4 inches to 12 inches center-to-center, covering the vast majority of residential cabinet hardware applications. The reversible design allows precise placement on both doors and drawers, making it suitable for complete kitchen or bathroom cabinet projects. Kreg’s precision-engineered guides deliver consistent accuracy, while built-in stops eliminate guesswork across multiple installations. The extra-large hardware capacity means you can use a single jig for an entire kitchen remodel, rather than switching between tools for different hardware sizes.
Best for: Homeowners updating kitchen or bathroom cabinets, furniture builders needing moderate hardware versatility, and DIYers who want to step up from basic models without premium pricing. Pros: Handles wide range of hardware sizes (1-3/4″ to 12″), reversible for doors and drawers, excellent value at under $50, reliable Kreg engineering. Cons: Not convertible between full-length and compact modes, may be oversized for knob-only projects, less robust than professional-grade alternatives. This jig represents the sweet spot for most home cabinet projects, offering enough capacity to handle mixed hardware types without the complexity or cost of enterprise-level systems.

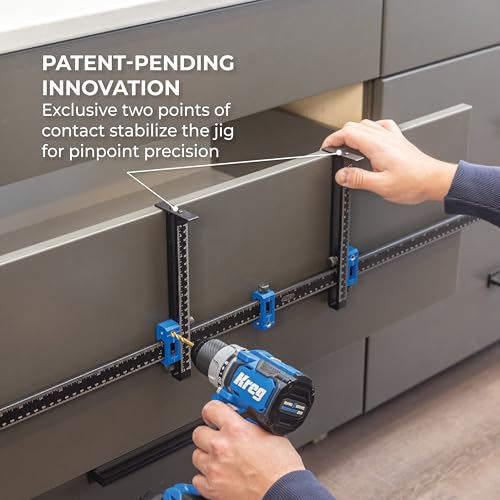

Kreg Cabinet Hardware Jig Pro XL (KHI-PULLPROXL) – Best Professional Convertible System
Kreg Cabinet Hardware Jig Pro XL - Professional Drill Guide

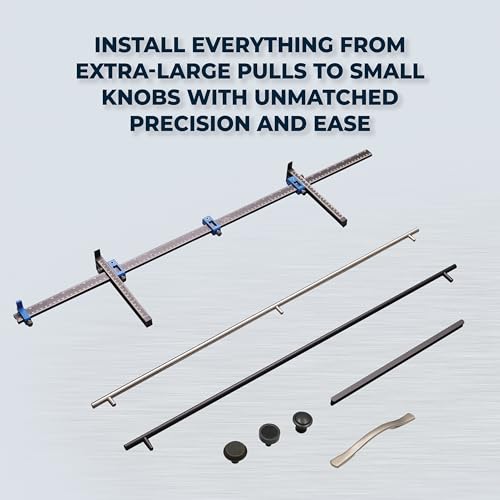

- Full-Length to Compact Setup: The Kreg Cabinet Hardware Jig Pro XL easily switches between full-length setup for wide pulls and compact configuration for knobs, so you get accurate placement on any cabinet hardware size
- Professional-Grade Accuracy: Kreg’s precision-engineered guides deliver accurate results, giving DIYers and pros the confidence to create ideally positioned hardware and holes
- Consistent, Repeatable Results: Built-in stops and intuitive adjustment features eliminate the guesswork, helping to make every installation or hole uniform from project to project
- Engineered for Versatility: Offers adaptable, user-friendly design—ideal for cabinets, furniture, or creative builds—making it easy to tackle any woodworking task
- Premium Kreg Tools: We offer products that help woodworkers close the gap between idea and outcome
As an Amazon Associate we earn from qualifying purchases. Product prices and availability are accurate as of the date/time indicated.
The Kreg Cabinet Hardware Jig Pro XL (KHI-PULLPROXL) at $99.99 represents the pinnacle of Kreg’s cabinet hardware jig lineup, featuring a convertible bar system that transforms between full-length setup for wide pulls and compact configuration for knobs. This flexibility eliminates the need to purchase multiple jigs, making it ideal for professional cabinet makers and ambitious DIYers tackling diverse projects. The modular design allows you to adapt the jig to your specific hardware without sacrificing accuracy or ease of use. Professional-grade precision-engineered guides ensure repeatable results across hundreds of installations, while built-in stops reduce setup time on each new piece. The full-length to compact conversion means you can install 10-inch pulls on one project and transition to 1-inch knobs on the next without reconfiguring your entire shop.
Best for: Professional cabinet installers, custom furniture makers, and DIYers planning multiple large-scale cabinet projects. Pros: Convertible full-length and compact modes, handles full range of hardware sizes, modular design reduces tool clutter, professional-grade accuracy, excellent long-term investment. Cons: Higher price point at $100, more complex setup than basic models, may be overkill for single-room updates. This jig pays for itself after 3–4 large cabinet installations, making it the best value for anyone planning to work on multiple projects or offer cabinet services to others.
True Position Tools PRO Cabinet Hardware Jig – Best Premium Professional Choice
Professional Cabinet Hardware Jig for Doors & Drawers
- THE PROFESSIONALS CHOICE - The only professional grade cabinet hardware jig on the market that rapidly installs hardware on cabinet drawer fronts. We invented the Cabinet Hardware Jig and we have perfected it further with the Rapid Center Extension (patent pending). This allows you to quickly center on drawer fronts and doors up to 42” making cabinet door knobs and even pulls in your kitchen and bathroom a breeze!
- THE ONLY JIG FOR SHAKER CABINETS - Accurately install handles or knobs on any cabinet door and drawer front. Patent pending shaker spacers provide stability when drilling recessed (shaker style) drawer fronts.
- FAST AND EASY TO USE - Tighten thumb screws, hold, and drill. No clamps or marking needed. Take the stress out of installing hardware on your cabinets. Fully adjustable and reversible drill template, set once and repeat. Also installs shelf pin holes and hinge plates!
- AVOID COSTLY MISTAKES - We use the highest quality materials and aerospace precision machining so that your knobs or pulls are placed exactly where you want them. Pays for itself after one install. Counterfeit jigs may look the same, but cannot mimic our extreme accuracy.
- LIFETIME WARRANTY - Family-owned & operated for 25 years, we build tools that stand up to the daily use of a professional. Your jig includes lifetime bushing warranty and free replacement for 60 days if the jig is not absolutely perfect. Proudly made in the USA.
As an Amazon Associate we earn from qualifying purchases. Product prices and availability are accurate as of the date/time indicated.
The True Position Tools PRO Cabinet Hardware Jig at $249.00 is the premium enterprise solution, engineered specifically for professional cabinet shops and high-volume installers. This jig was invented by True Position Tools and has been perfected over 25 years of family-owned operation. The patent-pending Rapid Center Extension allows you to center on drawer fronts and doors up to 42 inches wide, making it the only jig on the market specifically designed for shaker-style recessed hardware installation. Aerospace-precision machining ensures hardware placement accuracy that justifies the premium price point. The fully adjustable and reversible drill template means you set positioning once and repeat across unlimited pieces without recalibration. True Position Tools backs this investment with a lifetime warranty on bushings and a 60-day satisfaction guarantee.
Best for: Professional cabinet shops, commercial kitchen remodelers, furniture manufacturers, and anyone whose reputation depends on flawless hardware placement. Pros: Handles cabinets up to 42 inches, shaker-style spacers for recessed pulls, aerospace-grade precision, lifetime bushing warranty, made in USA, installs hinge plates and shelf pins. Cons: Premium price at $249, overkill for DIY single-project use, requires significant workspace. For professionals, this jig eliminates costly mistakes and reduces installation time significantly, making it the most economical choice when amortized across dozens of cabinet projects. The shaker cabinet specialization is unique—no other jig on this list offers dedicated support for recessed-style hardware.
Milescraft 7300 Cabinet Kit – Best Complete Multi-Function Bundle
Milescraft 7300 Cabinet Jig Kit - Complete Hardware & Hinge Tool
- Cabinet Hardware Drilling Jig: Adjustable sliding stops of the HardwareJig lock in place to align jig and allow repeated positioning on multiple pieces
- Cabinet Handle and Pulls Jig: Reversable design allows you to simply transfer the jig from the left door to right
- Drawer Slide Jig: Alignment fences and tabs on DrawerJig make sure your jig is accurately aligned on both frameless and face frame cabinets
- Drawer Installation Jig: large clamping area and non-marring anti-slip pads allow for tight and secure clamping to cabinet
- Concealed Hinge Jig: Edge alignment knobs and indexing pins automatically align the EuroHingeJig the correct distances from edge and end of cabinet doors
- Euro Hinge Drilling Jig: Metal bushing Drill Guide of the EuroHingeJig locks into jig and creates a perfectly straight hinge cup hole
- Shelf Pin Jig; CabinetMate has spring loaded ¼”, self-centering drill bit for perfect shelf pin holes every time
- Shelf Pin Drilling Jig: Standard 32mm spacing of CabinetMate creates hole patterns consistent with European shelving systems
As an Amazon Associate we earn from qualifying purchases. Product prices and availability are accurate as of the date/time indicated.
The Milescraft 7300 Cabinet Kit at $85.25 takes a comprehensive approach, bundling five separate jigs into one system: cabinet hardware jig, shelf pin jig, hinge jig, drawer slide jig, and concealed euro hinge jig. This all-in-one solution addresses the complete cabinet assembly workflow, not just hardware placement. The hardware jig itself features adjustable sliding stops for repeated positioning, reversible design for left and right doors, and compatibility with both frameless and face frame cabinets. The drawer slide jig includes alignment fences and anti-slip pads for secure clamping, while the euro hinge jig uses edge alignment knobs and indexing pins for precise hinge placement. For builders tackling full cabinet construction—not just hardware installation—this bundle eliminates the need to purchase individual jigs separately.
Best for: Cabinet builders who need to drill holes for hardware, hinges, shelf pins, and drawer slides all in one system; DIYers building cabinets from scratch; furniture makers requiring multiple drilling guides. Pros: Comprehensive five-jig bundle, excellent value compared to buying separately, handles hardware plus hinges and shelf pins, suitable for frameless and face frame designs, reversible hardware jig. Cons: Not as specialized as dedicated premium jigs, may be overly complex for knob-only projects, less robust than True Position Tools for high-volume professional use. This kit represents outstanding value for anyone building custom cabinets, as it eliminates the need to source five different tools and reduces overall project costs significantly.
What Should You Look for When Choosing a Kreg Cabinet Hardware Jig Pro XL or Similar Cabinet Hardware Jig?
Selecting the right cabinet hardware jig requires evaluating your specific project scope, hardware variety, available workspace, and budget. The most critical factor is hardware size range compatibility. Cabinet hardware spans from 1-inch knobs to 12-inch wide pulls, and some specialty applications require even larger spacing. Jigs like the Kreg Pro XL accommodate the full range, while basic models like the standard KHI-Pull focus on smaller knobs and compact pulls. If your project involves mixed hardware types—knobs on some doors, pulls on others—you need a jig with adjustable stops or convertible configurations. Professional cabinet shops using True Position Tools’ system can handle doors up to 42 inches wide, while mid-range Kreg models work well for standard residential cabinets up to 24 inches.
Reversibility and configuration flexibility directly impact installation speed and accuracy consistency. Reversible jigs allow you to flip the tool to accommodate left-hinged and right-hinged cabinet doors without repositioning or recalibrating. Convertible systems like the Kreg Pro XL switch between full-length and compact modes, adapting to different hardware sizes without tool swaps. This flexibility reduces setup time from 5 minutes to under 30 seconds per piece, compounding time savings across large projects. Consider your cabinet configuration as well—frameless European-style cabinets require different alignment approaches than traditional face-frame cabinets. The Milescraft 7300 explicitly supports both, while specialized systems like True Position Tools optimize for shaker-style recessed hardware.
Accuracy and repeatability mechanisms separate professional-grade jigs from budget options. All five models reviewed here use precision-engineered guides, but the implementation varies. Basic Kreg models rely on intuitive adjustment features and built-in stops, while premium systems employ aerospace-grade machining, hand calibration, and indexing pins for sub-millimeter accuracy. For a single kitchen cabinet update, basic accuracy suffices—slight variations become invisible once hardware is installed. For professional cabinet shops or custom furniture makers, accuracy differences compound across hundreds of installations. A jig that’s off by 1/16 inch on each door becomes noticeable when viewing 20 cabinet fronts. True Position Tools’ lifetime bushing warranty and 60-day satisfaction guarantee reflect confidence in precision that justifies the premium price.
Portability versus workspace requirements depend on your shop setup and project delivery model. The basic Kreg KHI-Pull weighs just a few pounds and fits in a tool bag, making it ideal for on-site installations or mobile cabinet services. Larger jigs like the True Position Tools system require dedicated workspace and clamping surfaces, but offer superior stability and accuracy for stationary shop use. Mid-range models like the Kreg Pro XL balance portability with functionality, weighing under 5 pounds while maintaining full-size hardware capacity. If you’re drilling hardware on-site at customer locations, portability becomes critical. If you’re building cabinets in a dedicated shop, workspace capacity and stability matter more than weight.
Material quality and durability affect long-term cost of ownership. Budget jigs use plastic guides and basic metal components, suitable for occasional use but prone to wear after 50–100 installations. Mid-range Kreg models employ precision-machined metal guides and reinforced plastic bodies, rated for 300+ installations before requiring maintenance. Professional-grade systems like True Position Tools use aerospace-grade materials and offer lifetime warranties, reflecting engineering designed for 1,000+ installations. If you’re a DIYer planning one kitchen remodel, durability matters less. If you’re a professional installer or furniture maker, a $250 jig that lasts 10 years is far more economical than replacing a $50 jig every 2 years.
Additional functionality adds value when purchasing multi-purpose systems. The Milescraft 7300 bundle includes shelf pin, hinge, and drawer slide jigs, eliminating separate purchases if you’re building complete cabinets. Some jigs also install euro concealed hinges and hinge plates, expanding their utility beyond hardware mounting. Consider whether you need these functions—a knob-only installation doesn’t require hinge capability, but a complete cabinet build benefits from integrated solutions. True Position Tools explicitly supports hinge and shelf pin installation, while Kreg’s single-purpose jigs focus exclusively on hardware placement.
Frequently Asked Questions
What is the difference between the Kreg Cabinet Hardware Jig Pro and Pro XL models?
The Kreg Pro ($49) accommodates hardware from 1-3/4 inches to 12 inches center-to-center with a fixed configuration. The Pro XL ($99.99) adds a convertible bar system that transforms between full-length setup for wide pulls and compact configuration for knobs, eliminating tool swaps. The Pro XL is ideal for professionals handling diverse hardware sizes; the Pro suits DIYers with consistent hardware selections across projects.
Can the Kreg Cabinet Hardware Jig work on frameless European-style cabinets?
Kreg jigs work on both frameless and face-frame cabinets, though their alignment approach differs slightly between styles. The Milescraft 7300 explicitly optimizes for both with dedicated alignment fences. For frameless cabinets, ensure your jig accommodates edge alignment without requiring face-frame reference points. Kreg’s reversible design adapts to frameless applications, but verify compatibility with your specific cabinet type before purchasing.
How many cabinet doors can a single hardware jig handle before requiring replacement?
Budget Kreg models ($32–$49) typically handle 100–300 installations before wear affects accuracy. Mid-range models like the Pro XL manage 500+ installations. Professional systems like True Position Tools are engineered for 1,000+ installations with lifetime bushing warranty. Actual durability depends on material quality, clamping force, and maintenance. Regular cleaning and proper storage extend jig lifespan significantly.
Is the True Position Tools PRO Cabinet Hardware Jig worth $249 for DIY use?
The True Position Tools jig is engineered for professional cabinet shops and high-volume installers. DIYers tackling single kitchen remodels gain better value from the Kreg Pro XL at $99.99, which delivers excellent accuracy for residential projects. True Position Tools pays for itself after 3–4 commercial installations but represents overkill for occasional DIY use, unless you plan multiple large cabinet projects.
What size drill bit do I need for cabinet hardware installation?
Cabinet hardware jigs guide standard drill bits—typically 5/64 inch for pilot holes and 1/4 inch for full-size hardware holes. Verify your specific hardware’s hole size requirements before drilling. Most jigs accommodate standard bits without modification. Using the correct bit size prevents hardware from sitting loose or requiring force during installation, ensuring professional appearance and long-term stability.
Can cabinet hardware jigs install both knobs and pulls on the same cabinet?
Yes, reversible and convertible jigs accommodate both knobs and pulls. The Kreg Pro XL switches between full-length and compact modes, handling 1-inch knobs and 12-inch pulls on the same project. The Milescraft 7300 includes a reversible hardware jig for this purpose. Basic models may require repositioning or separate tools for different hardware sizes, so verify range compatibility before purchasing.
Which Kreg Cabinet Hardware Jig Pro XL or Alternative Should You Buy in July 2026?
The Kreg Cabinet Hardware Jig Pro XL (KHI-PULLPROXL) at $99.99 emerges as the best overall choice for most DIYers and semi-professional builders. Its convertible full-length to compact system eliminates tool swaps, the hardware range spans 1-3/4 inches to 12 inches, and Kreg’s proven engineering delivers accuracy that rivals systems costing three times as much. The modular design reduces shop clutter, and at $100, the jig pays for itself after 3–4 substantial cabinet projects. For anyone planning multiple cabinet installations or considering cabinet services for others, this jig represents the optimal balance of capability, price, and versatility.
For budget-conscious DIYers planning a single kitchen or bathroom update with consistent hardware sizing, the Kreg Cabinet Hardware Jig (KHI-Pull) at $32.98 delivers surprising value. Its portability makes it perfect for on-site installation, and Kreg’s precision guides ensure accuracy that satisfies residential standards. You sacrifice hardware range and convertibility, but gain a tool light enough to carry in a tool bag and simple enough that setup takes under a minute. This jig excels when your project involves 15–20 matching knobs or small pulls.
For professional cabinet shops and high-volume installers, the True Position Tools PRO Cabinet Hardware Jig at $249 justifies its premium through aerospace-grade engineering and shaker-cabinet specialization. The patent-pending Rapid Center Extension handles doors up to 42 inches, the hand-calibrated accuracy prevents costly mistakes, and the lifetime warranty reflects confidence in durability. Professionals recoup this investment within 3–4 commercial kitchen installations, making it the most economical long-term choice for anyone whose reputation depends on flawless hardware placement.
For cabinet builders requiring complete assembly solutions, the Milescraft 7300 Cabinet Kit at $85.25 offers exceptional value as a five-jig bundle. The integrated hardware, hinge, shelf pin, and drawer slide jigs eliminate separate purchases, and the reversible hardware jig accommodates both frameless and face-frame cabinets. This system suits anyone building cabinets from scratch rather than simply updating hardware on existing pieces. The bundle approach reduces overall project costs and ensures all tools work together seamlessly.
For intermediate DIYers needing reliable mid-range performance, the Kreg Cabinet Hardware Jig Pro (KHI-XLPULL) at $49 strikes an excellent balance between the basic model and the Pro XL. It accommodates hardware from 1-3/4 inches to 12 inches, features a reversible design for doors and drawers, and maintains Kreg’s reputation for precision engineering. At under $50, this jig offers more capability than the basic model without the convertible complexity of the Pro XL.
Your final decision depends on project scope, hardware variety, workspace constraints, and long-term cabinet-building plans. If you’re tackling a single 20-door kitchen cabinet update with matching hardware, the basic Kreg jig suffices and saves $67. If you’re planning multiple projects or considering cabinet services, the Pro XL investment pays dividends. If you’re a professional, True Position Tools eliminates accuracy concerns and delivers tools engineered for commercial-grade reliability. Regardless of choice, any of these five jigs dramatically improves hardware installation accuracy compared to freehand drilling, transforming cabinet appearance from amateur to professional-quality results.
